DC 3V 3.7V 5V 6V LED Driver 30-1500MA Constant Current Adjustable Module PWM

DC 3V 3.7V 5V 6V LED Driver 30-1500MA Constant Current Adjustable Module PWM

Regular price £2.54 GBP
Regular price Sale price £2.54 GBP
Sale Sold out
Taxes included.

Simple LED driver than you can adjust the voltage. Use a small screwdriver to adjust the variable resistor to the level required. Can power more than 1 LED but do not go over the 1500mA maximum draw. PWM wire can be left off if PWM control is not being used.

Price per piece.

Operating voltage:DC 2.8-6V(3V 3.3V 3.7V 4.5V 5V 6V LED driver)

Output current:30-1500MA

Large output power:9W

Can drive 1-16PCS 2.8-6V LEDs(high current not more than 1PCS)

Current Adjustment

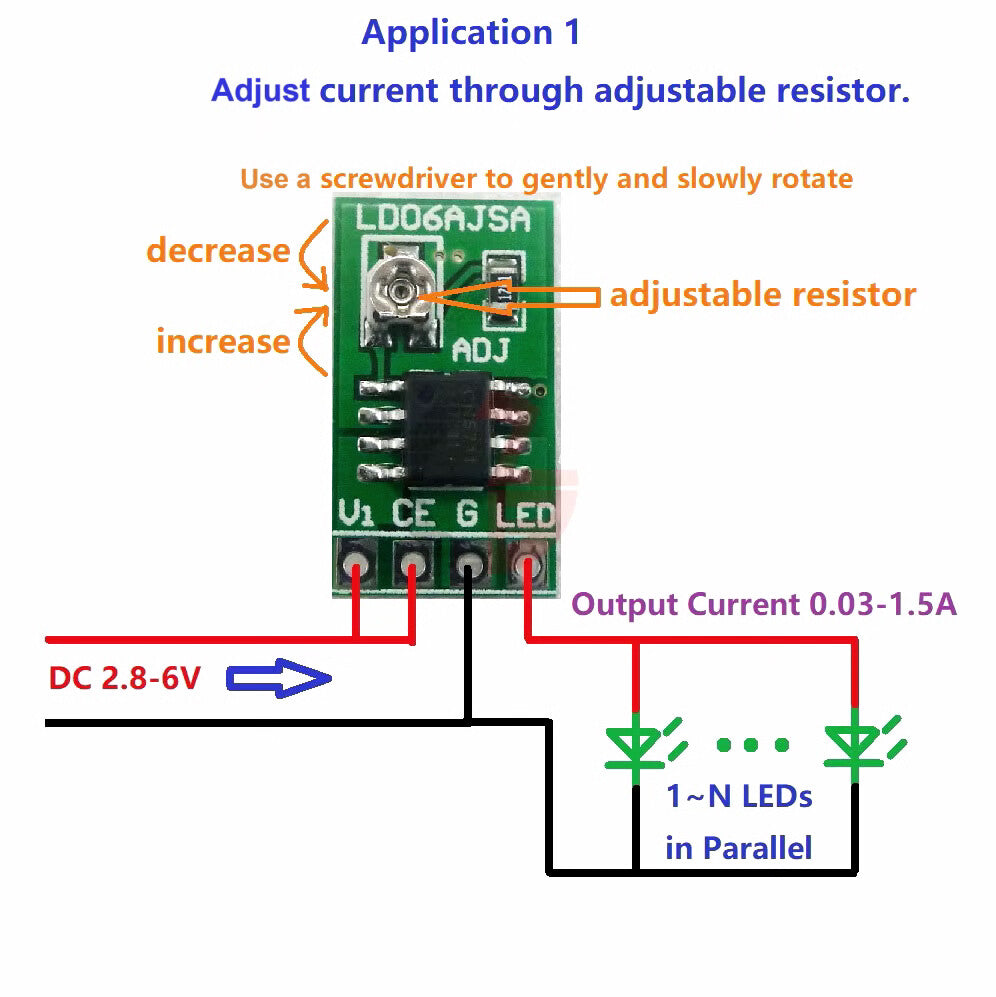

1.Through adjustable resistor

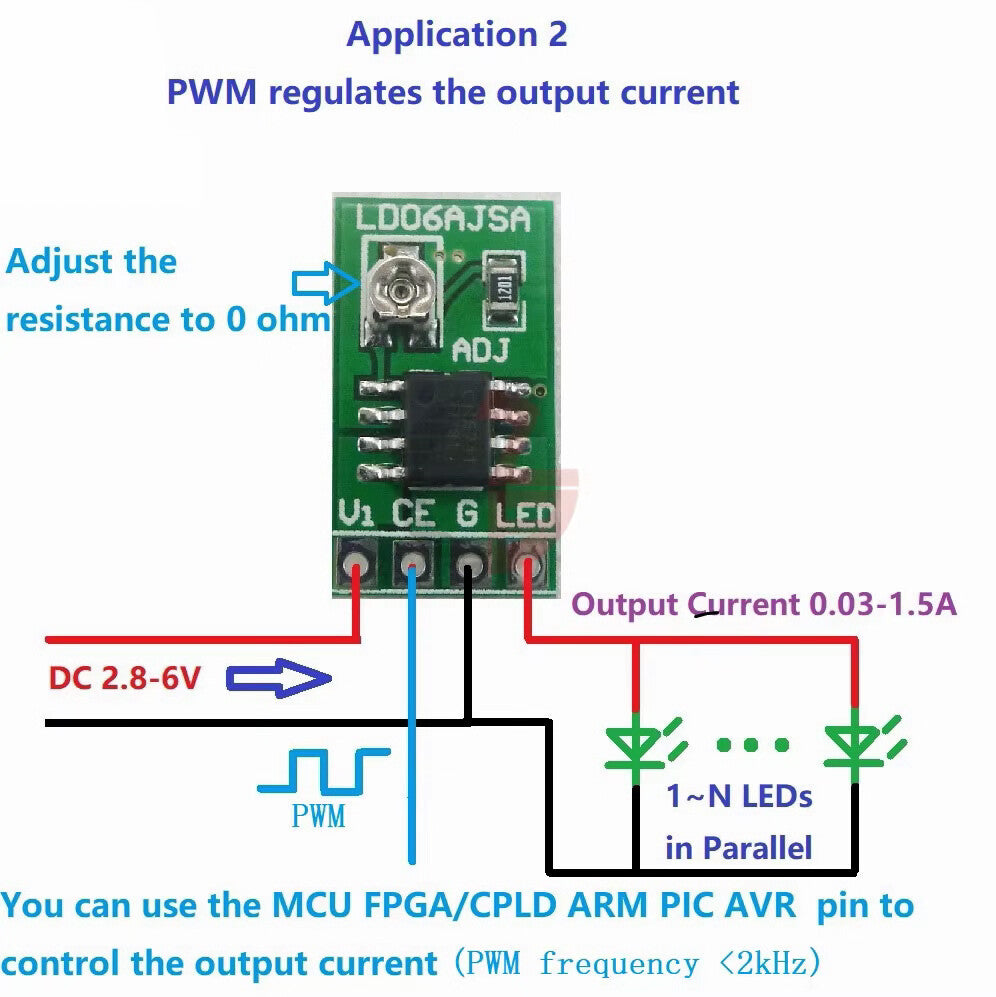

2.Through PWM signal control

Chip temperature adjustment

LED overcurrent protection

Working temperature range

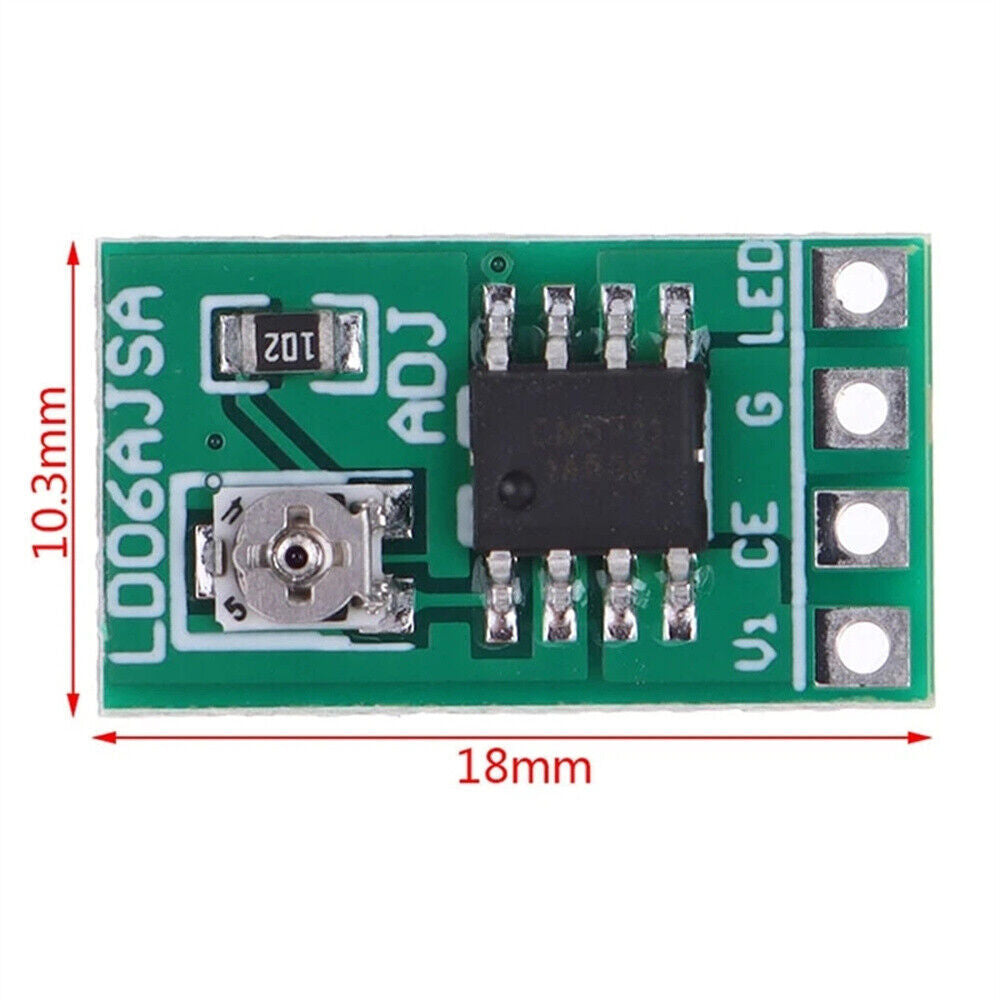

Size:18*10.3*2.8MM

Weight:5.6g
