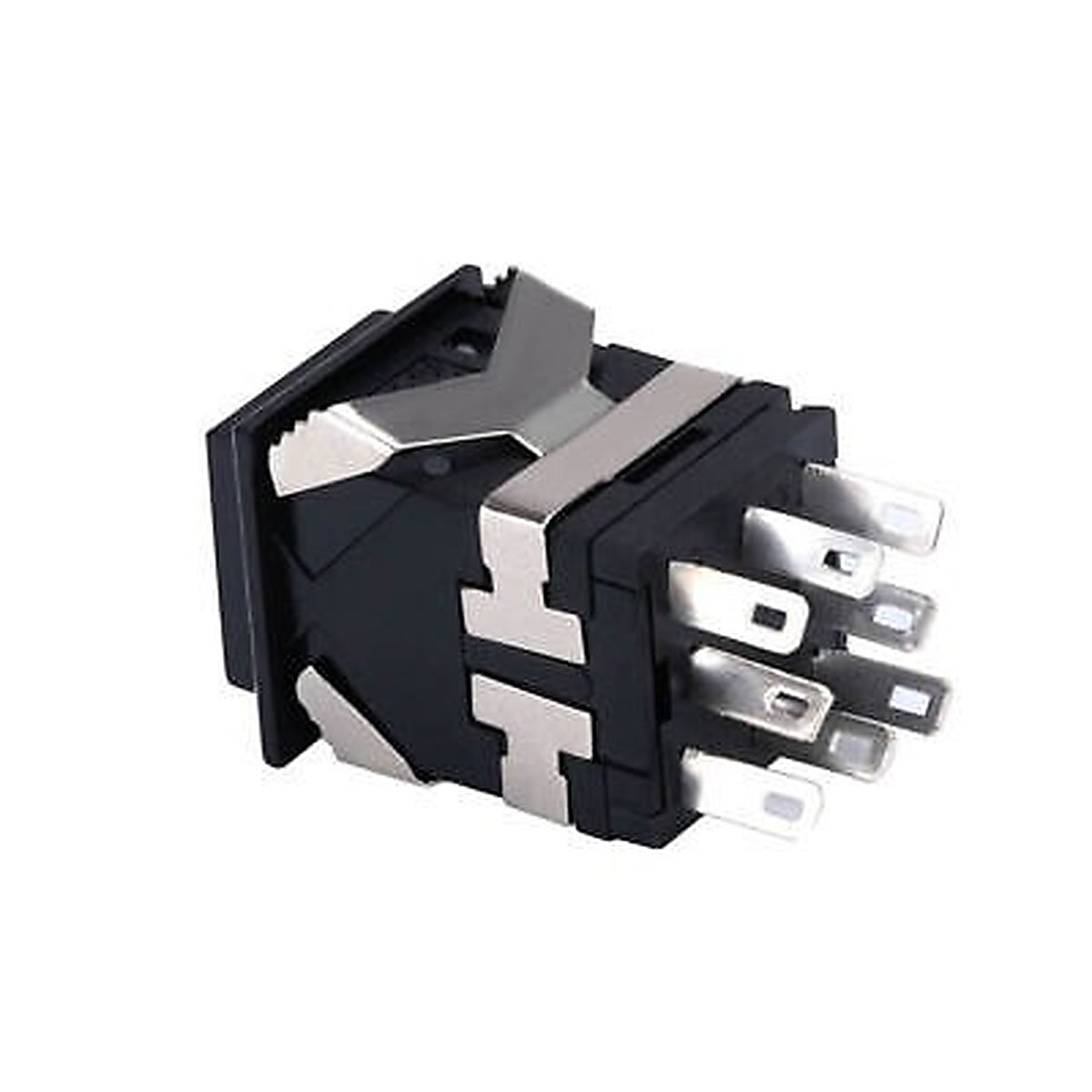

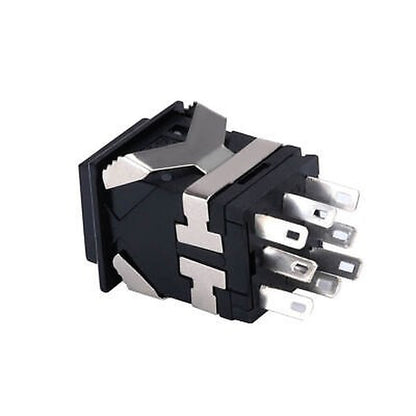

KD2-22 Momentary or locking push button switch ideal for flight simulators and Elite etc. Great for making cockpit custom panels etc.
High quality button now with option for GREEN,RED,BLUE,WHITE or YELLOW LED.

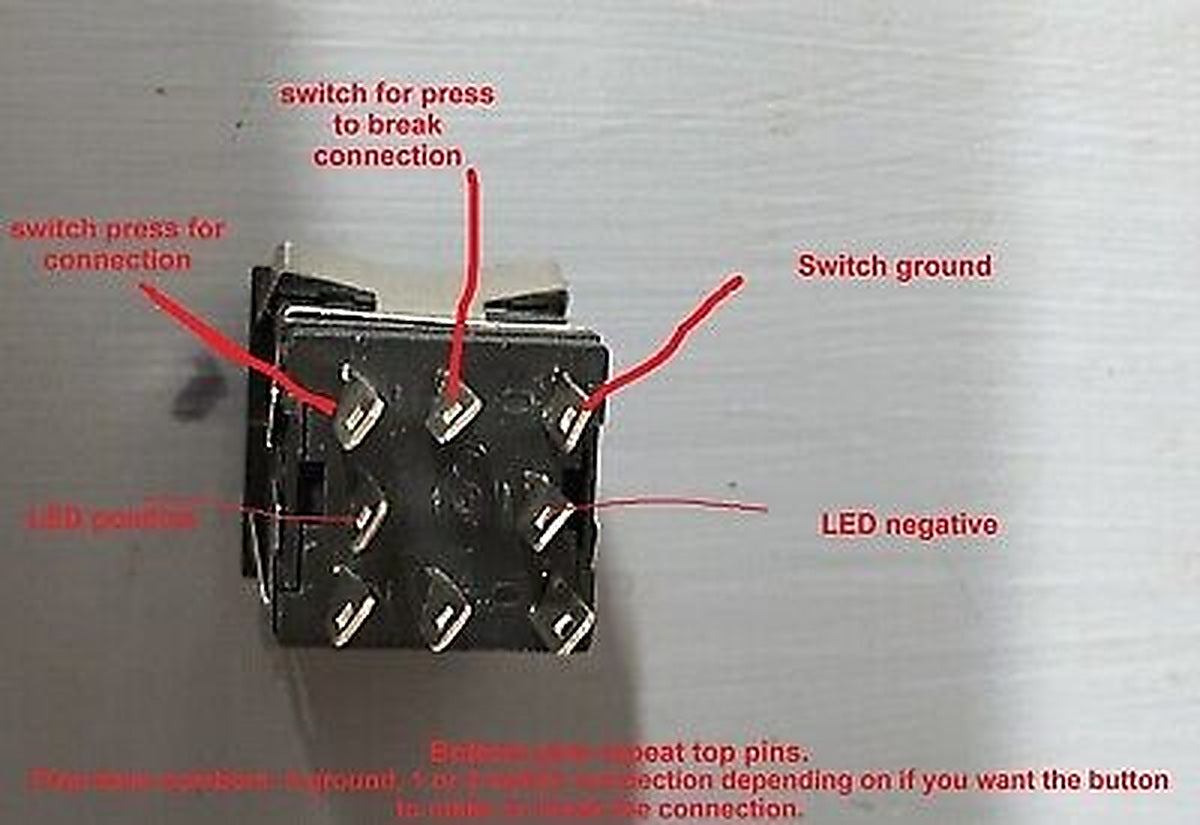

The button has six pins at the back for the press of the button and the LED has two separate pins.
Ambient temperature: -10C~+85C
Contact resistance: < 20M
Insulation resistance: >500VDC 100M
Operating Temperature: -25C~+85C
Mechanical life: >50000 CYCLES
Electrical life: >10000 CYCLES
LEDs: 2.1v Use a resistor of 270ohm for 3v, higher for other voltages. Ask if not sure happy to help. For use in DIY low voltage cockpits etc NOT for mains use.
Price per button. Please choose colour of led required from the drop down list.
Small quantities will be sent in a padded bag and larger quantities boxed. Thank you.
